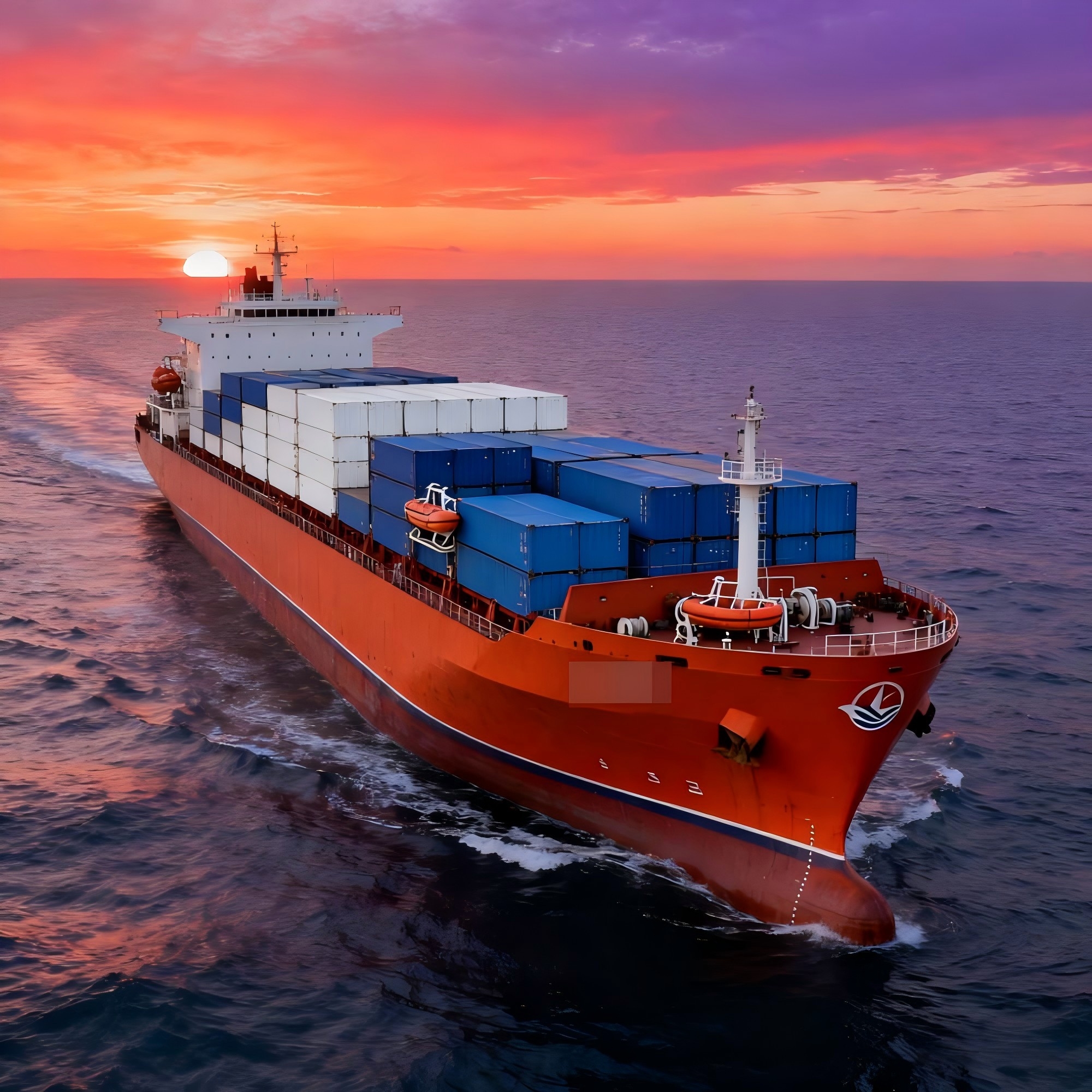

3300TEU Container Ship
Key Features
Container ship, unlimited navigation area
* Large DWT, high loading capacity of 14t/TEU, reaching 90% of total container capacity
High cargo hold utilization, three-level high cube (FEU) and four-level standard (TEU) containers.
* Excellent hull lines, optimized for multiple loading conditions, low fuel consumption, and good economy
* Strong energy-saving and environmental protection capabilities, equipped with energy-saving fan caps
* High cost-effectiveness and efficient arrangement
* EEDI Stage 3, ME III dangerous goods deck loading
Key Features
Overall Length: 197.00 meters
Vertical Spacing: 194.00 meters
Molded Beam: 34.80 meters
Molded Depth: 19.20 meters
Design Drawings: 12.50 meters
* Scanned Copy: 13.40 meters
Design Draft Deadweight: 57,400 tons
* Empty Draft Deadweight: 63,100 tons
* Range: 11,000 nautical miles
* Supplies: 24+1 pilots
Cargo Capacity and Equipment
* Containers in Hold/On Deck: 1,738/1,578 TEU
* Total Containers: 3,316 TEU
* * Homogeneous 14t/TEU: 2,980 TEU
* Homogeneous 25t/TEU: 2,380 TEU
* Homogeneous 30t/TEU: 2,035 TEU
* Refrigerator plugs (in hold/on deck): 200
* Hatch cover: Removable
* Container dimensions: 20' / 40' / 45' x 8'6" / 9'6"
Deck stacking capacity: 20ft/40ft container: 90 tons/105 tons
* Stacking load holding 20' / 40' ft: 220/220
* Truck crane: None
Tank capacity
* Heavy fuel oil (including LSHFO/ULSFO): 1,240 cubic meters
Low sulfur diesel: 300 cubic meters
* Diesel: 300 cubic meters
* Fresh water: 220 cubic meters
* Ballast tank: 16,200 m³
Main Mechanical Components
* Main Engine: 6UEC50LSH-Eco-C2-LPSCR - Tier III
* SMCR: 10,300 kW x 108 rpm
* CSR (85% SMCR): 18,755 kW x 102.3 rpm
* Propeller: 1 x FPP
* Diesel Generator: 3 x 750 kWe
* Shaft Generator: 1 x 600 kWe
Port Generator: 1 unit, 400 kW
* Emergency Generator: 1 x 160 kWe
Low Voltage Shore Power: 1 x 400 kW, 200 A, 50 Hz
Energy Efficiency Details
Design Draft Service Speed: 15.0 knots
CSR with 800 kW power output, 15% shipping profit, equipped with energy-saving devices
ME Fuel Consumption at CSR (3.14 PTO): 33.6 tons/day
(Based on LCV) 42,700 kg, ISO conditions, excluding engine tolerances, including PTO FOC)
* ME FOC Other speeds (15% sea profit)
Speed (knots): 120 125 130 135 140 145
Fuel consumption (tons/day): 15.1 16.8 18.6 20.8 23.0 26.2
* EEDI Stage 3, below IMO baseline 67%
Classification
* CCS * CSA Container ship; Ice class B; PSPC (B);
BWM (T): FLQMW25; Loading computer (S1): Underwater measurement
* CSM MCC; SCM G-EP; G-ECO (CDx), BWM (T) | Ampere
Preliminary CD67 value, final determination based on class.
